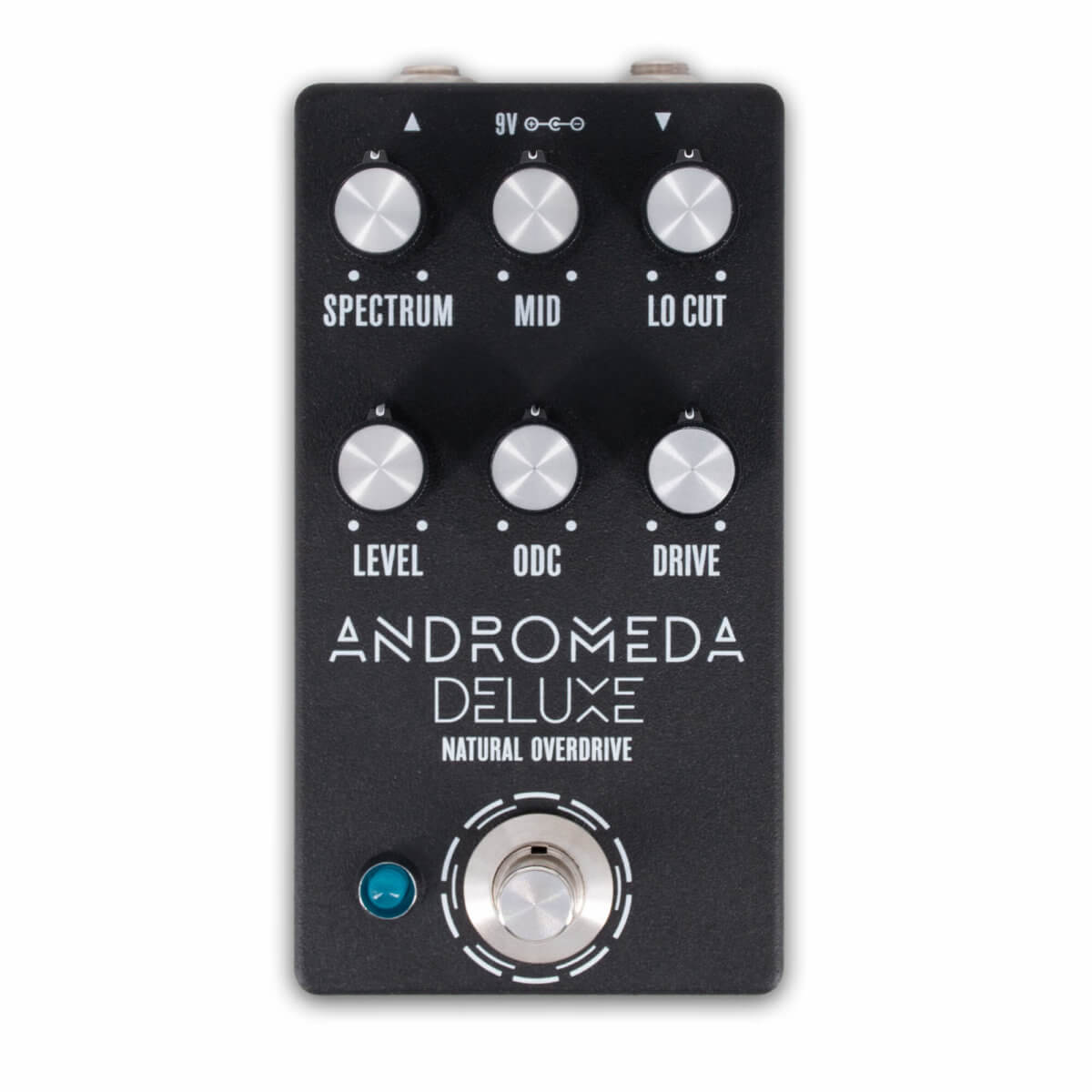

Andromeda Deluxe Natural Overdrive

Based On
Nordland ODR-C
Effect Type
Overdrive
Build Difficulty
Intermediate
Project Summary
An updated version of the definitive Nashville overdrive, handmade by the original circuit designer, adding three new controls and a number of other small refinements.
Andromeda Deluxe Natural Overdrive printed circuit board

Printed Circuit Board

What's included?
PCB only. Build instructions and parts list can be viewed or downloaded from this page.

$9.60

In stock

Complete Kit

Not yet available.
Kits are developed based on interest, so if you’d like to see one for this project, let us know.
Request Kit
70 people are interested.

Project overview

The Andromeda Deluxe is an adaptation of the Nordland ODR-C, a boutique overdrive first traced by Aion FX in 2021, based on the Nobels ODR-1.

The ODR-1 was originally released in 1992, designed by Kai Tachibana as an original circuit for Nobels. Intended as a budget alternative to the Tube Screamer, the build quality was less than stellar, but to those who played it, it was undeniable that the circuit itself was something special. It steadily increased in popularity over the following decades until the present when it’s often seen in lists of the top 10 overdrives of all time.

In 2019, Kai decided to revisit the ODR-1 and update it with a few new features under his own Nordland brand name. The result is the ODR-C Custom Overdrive, a brilliantly-designed handmade pedal that occupies the opposite end of the spectrum from the ODR-1 in both build quality and price. It features three new controls: a low cut that fixes the bass-forward tone of the original, a midrange control that can boost or cut, and an “overdrive de-compress” (ODC) control that gradually adds higher-threshold clipping diodes in the soft-clipping stage. Each of the three knobs can be set to a position that emulates the original ODR-1, so the core circuit is the same change despite all the added features.

The Andromeda Deluxe is based on the audio path of the ODR-C, only cutting out the complex polarity protection and LED dimmer circuit. Side by side, they should sound the same. But we’ll reiterate that the original ODR-C is fantastic piece of engineering and it’s worth it if you can find one. Check out the tracing journal if you want to see what we’re talking about.
